200 Sets/Year Refrigerator Stamping Die Progressive Stamping Tool OEM

Brand Name : IDO

Model Number : refrigerator compressor traverse

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : $10000-$50000

Payment Terms : L/C,T/T

Supply Ability : 300 sets/year

Delivery Time : 45days

Packaging Details : Wooden Case, Anti-Rust Oil, Vacuum Packaging

Part Name : Refrigerator compressor traverse

Part Material : DC52D

Mould Type : Stage mold

Mould Size : 950*550*450mm

Mould Weight : 1T

Punch Tonnage : 250T

Smartness : One-Key Changeover

Mold Cavity Technology : CNC Milling

Contact Now

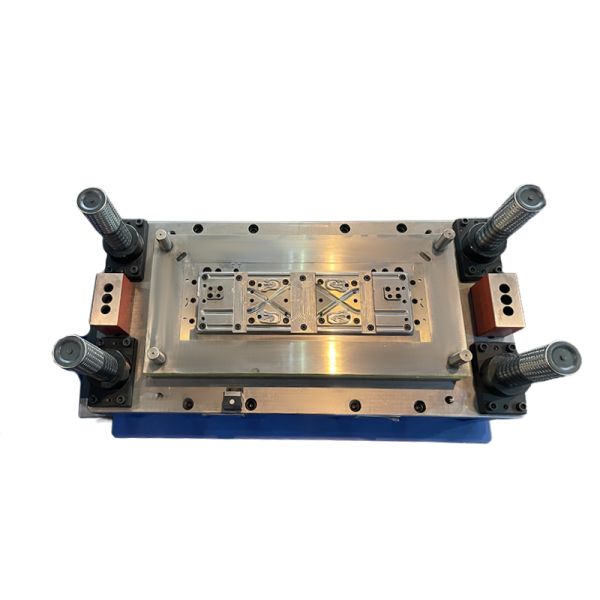

Refrigerator Stamping Die Refrigerator Compressor Traverse Stage Die With 200 Sets/Year Production Capacity

Description:

Our specialized refrigerator stamping die is engineered for the high-volume production of refrigerator compressor traverses. This stage die is designed for high-precision forming and cutting, with a proven annual output capacity of up to 200 sets. Built for durability and efficiency, this tooling ensures consistent, high-quality results, helping you meet demanding production schedules and maintain a competitive edge.

Quick Detail:

Lifespan: Our dies are built with high-grade materials to achieve a certified life cycle of 1 million shots or more.
Accuracy: We guarantee a repeatable part tolerance of +/- 0.003 mm to ensure consistent quality.
Punch Tonnage: Our dies are rated for specific press tonnages, such as 300T or 500T, to ensure optimal performance.
Maintenance: The design features modular components, reducing average maintenance time to under 4 hours.

Specifications:

Mould/Tool Type	Stage tool/mould/die
Production Application	White Household Appliances (washing machine, refrigerator, dryer, dishwasher…), Automobile (heat shield, radiator...)
Metal Sheet Material	Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper
Mould Material	V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25
Mould Base	SD, LKM Standard, HASCO Standard, Self-made, etc.
Tolerance	±0.003mm
Hardness	Upon request
Surface Treatment	TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts
Precision Machining	CNC/ surface grinding machine/ wire cutting/ EDM
Measuring Instruments	CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.
Drawing Format	DWG, STP, STEP, X_T, IGES, PDF
Design Software	Auto CAD, UG, Solidworks
Trade terms	FOB (Shanghai)
Mould Lead time	Generally 6~8 weeks (as per actual situation)

200 Sets/Year Refrigerator Stamping Die Progressive Stamping Tool OEM
